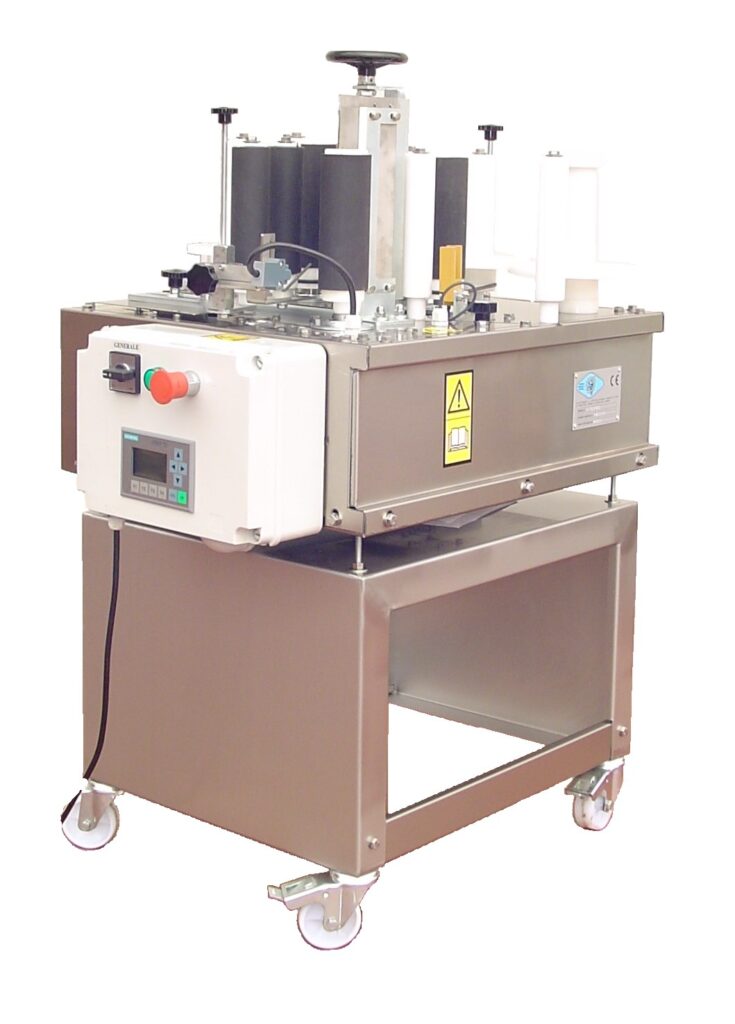

Labelling machine Etc230 AISI 304 stainless steel frame Self-sticking labels located on a band wound round on a bobbin Inner diameter of the bobbin from 65mm to 75mm Maximum external diameter of the bobbin: 200mm Maximum height of the band: 140mm It can apply both front-and back labels It is preferable to use rectangular labels Possibility to use labels which wind round the bottles Front – and back labels can be located either on the same bobbin or on two separate bobbins Diameter of the bottles up to 112mm The labelling time is about 3 seconds PDF ELECTRIC STARTING 230 Volt, 50 Hz mono-phase motor OPTIONAL Stainless steel G model wheeled supportStamping deviceLabel sensor for already labelled bottlesDevice to apply the band around the bottle-neckInverter for 110 Volt, 60 Hz feeding
